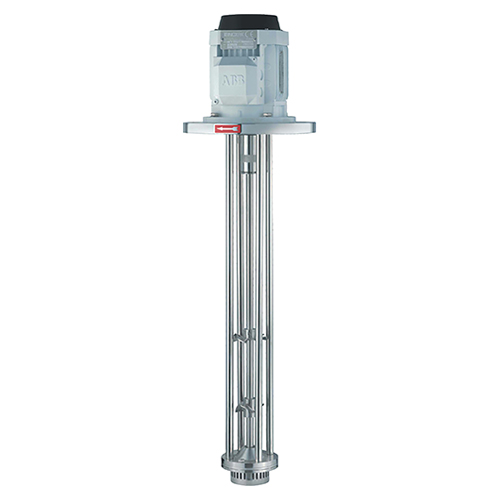

ME 1100 Vertical Mixer

The ME 1100 series of the high shear vertical mixers present a solution for the processes of dispersion, emulsifying, homogenisation and disintegration of solids in a wide range of products in the food-processing, cosmetics, pharmaceutical and fine chemistry industries.

These mixers are intended for work under the atmospheric pressure and with the products of either high or low viscosity. The mixers are recommended to work with anchor type agitators if the application involves highly viscous media.

The high speed and adjusted tolerances between the rotor and the stator result in high suction potential, the product is suctioned from the bottom of the tank and driven to the centre of the head.

Other important feature is the possibility to minimize the aeration of the product.

Technical informations

Features:

Motors: IEC B5, IP55, F-class insulation.

Materials:

Parts in contact with the product: AISI316L

Guide bushing: PTFE

V-ring: NBR
