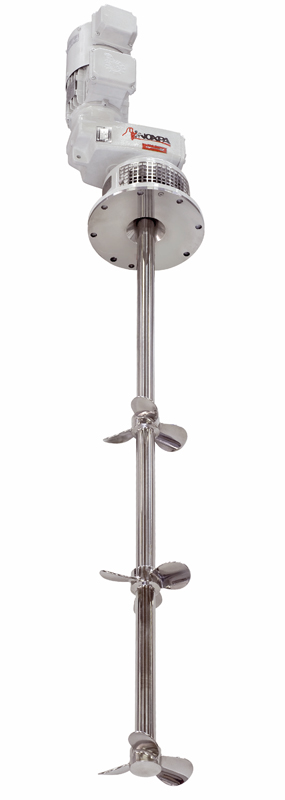

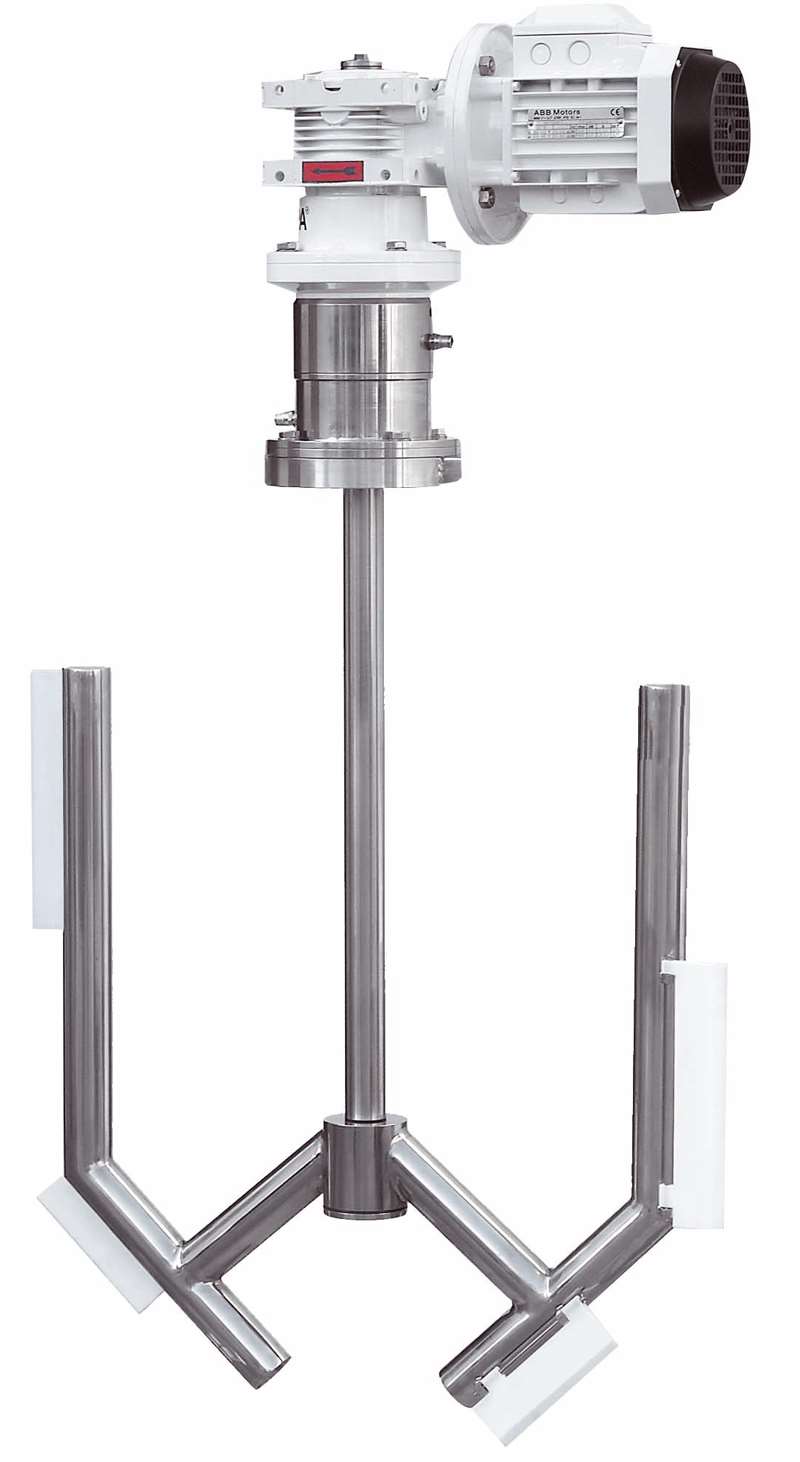

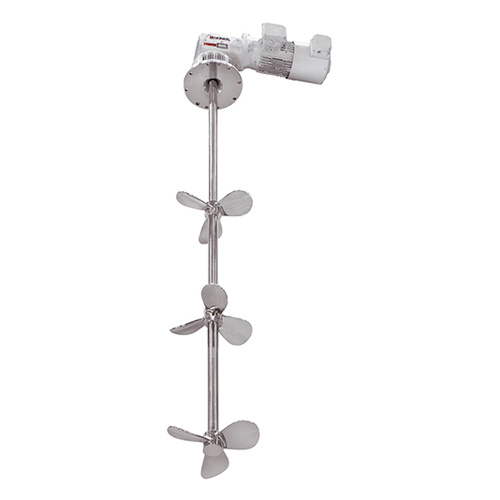

CXC Agitators with Mechanical Seal

INOXPA offers a wide range of agitators designed for work in sealed tanks intended for some sterile processes of the pharmaceutical industry.

The agitators can be used under pressure, atmospheric pressure or vacuum. They can also be incorporated into fermenters.

The most common applications are maintenance of plasma and cell cultures, preparation of various pharmaceutical formulations.

The agitators are assembled off-centered, it prevents the rotation of the stirred product, thus, the installation of the current deflectors is avoided.

The agitators can be provided with geared motors for slow agitation or with direct drive if high speed is required.

Technical informations

Materials:

Parts in contact with the product: AISI 316L

Support: GG-15

Gaskets: EPDM according to FDA 177.2600

Mechanical seal: C/SiC/EPDM

Surface finish: Ra ≤ 0,5 µm
