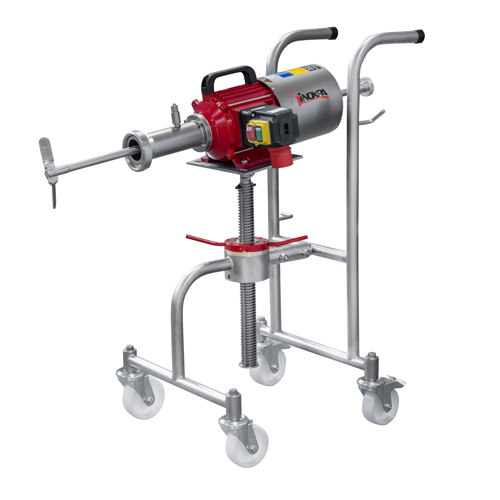

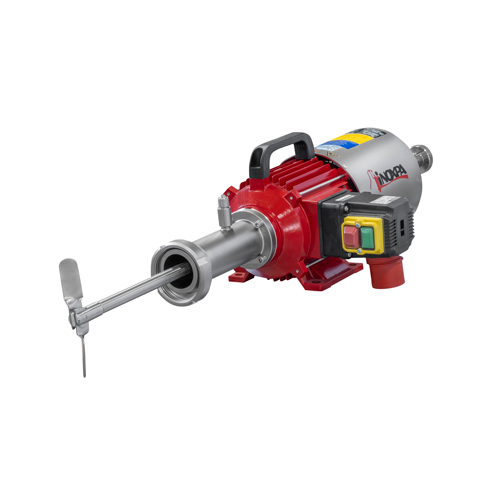

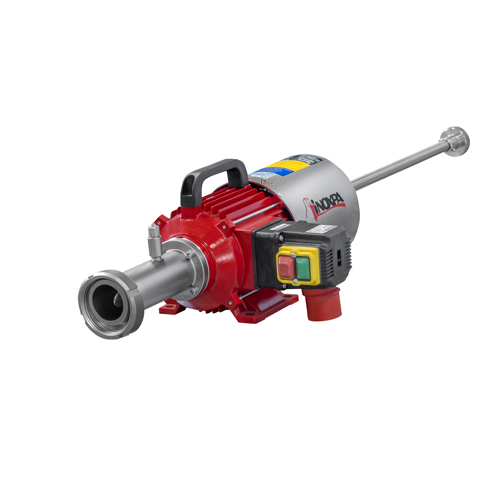

CPG Side-entry Agitator

Side-entry agitator for the winemaking industry and designed for installation in tanks full of product by means of a full bore valve without losing product and without special tools.

CPG side-entry agitator ensures the maitenance of solids in suspension.

The design of the agitator is based on the shaft that slides through a full bore valve into the tank and a propeller that opens automatically when started. The agitator shaft is provided with a C/St.St./EPDM mechanical seal.

Technical informations

Features:

The standard mixing element is folding propeller type 12; Electric motor 3 ph, 400 V. , 50 Hz, IP 55, 1450 rpm; Manual deaeration valve; Standard connections DIN 11851.

Materials:

Parts in contact with the product: AISI 316L

Gaskets: EPDM

Mechanical seal: C/St.St./EPDM

Surface finish: Matt
