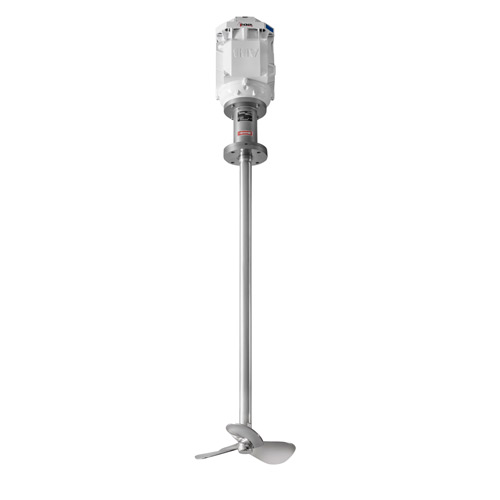

BFI Vertical Agitator

The range of BFI series presents vertical direct motor-driven agitators.

These agitators are used in processes of mixing, dissolution, dispersion and maintenance whenever powerful and high-speed agitation is required in the food processing, cosmetics, pharmaceutical or chemical industries.

The agitators are normally fitted to small or medium volume tanks for work with low-viscosity products.

Bearing support of the BFI series agitators is manufactured in stainless steel and it is indicated for the pharmaceutical applications.

The agitators are normally installed inside the tank either centrally with current deflectors, or offset so that the offsetting itself prevents the rotation of the stirred product.

Technical informations

Features:

IEC motors, 1500 rpm, IP 55, F-class insulation; Marine propeller (Type 10) or saw tooth propeller (Type 4); Indicated for work under pressure or in vacuum (-1 to 4 bar).

Material:

Parts in contact with the product: 1.4404 (AISI 316L)

Retainer GYLON according to FDA: 177.1550

Bearing support: 1.4301 (AISI 304)

Surface finish: Ra ≤ 0,8 μm (except cowler)
